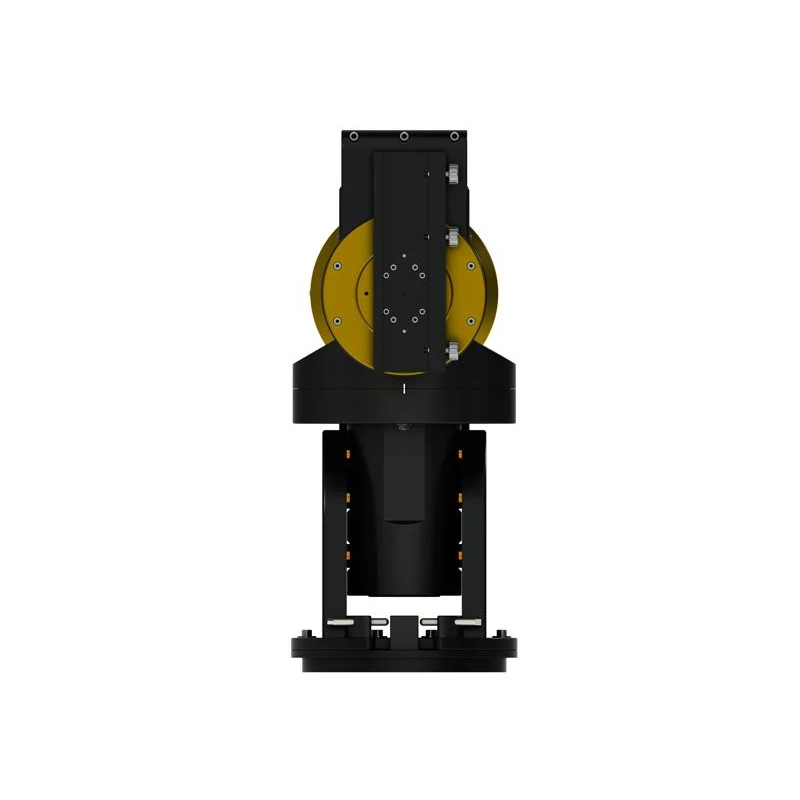

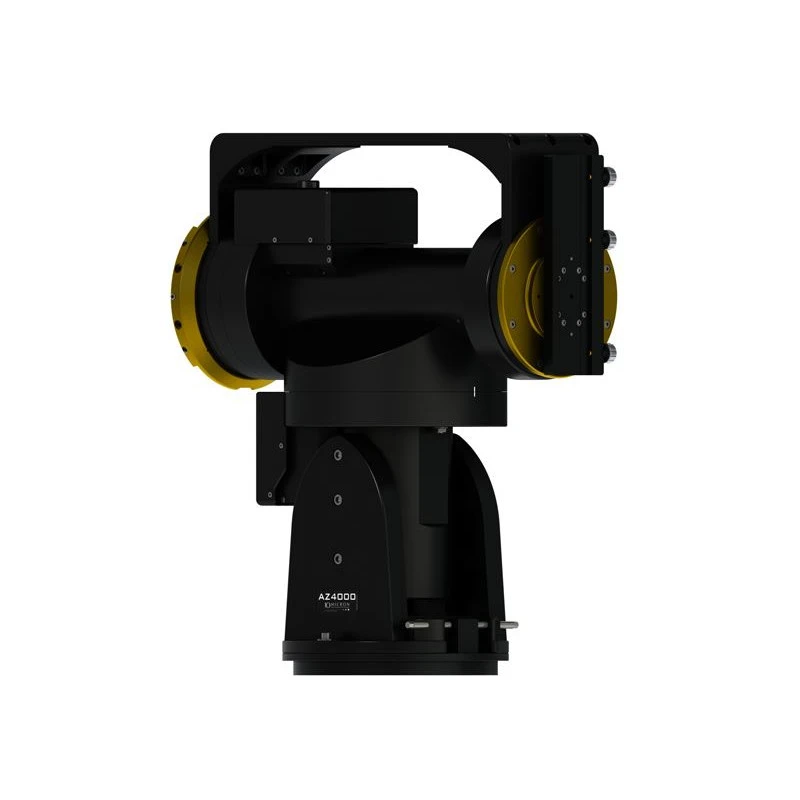

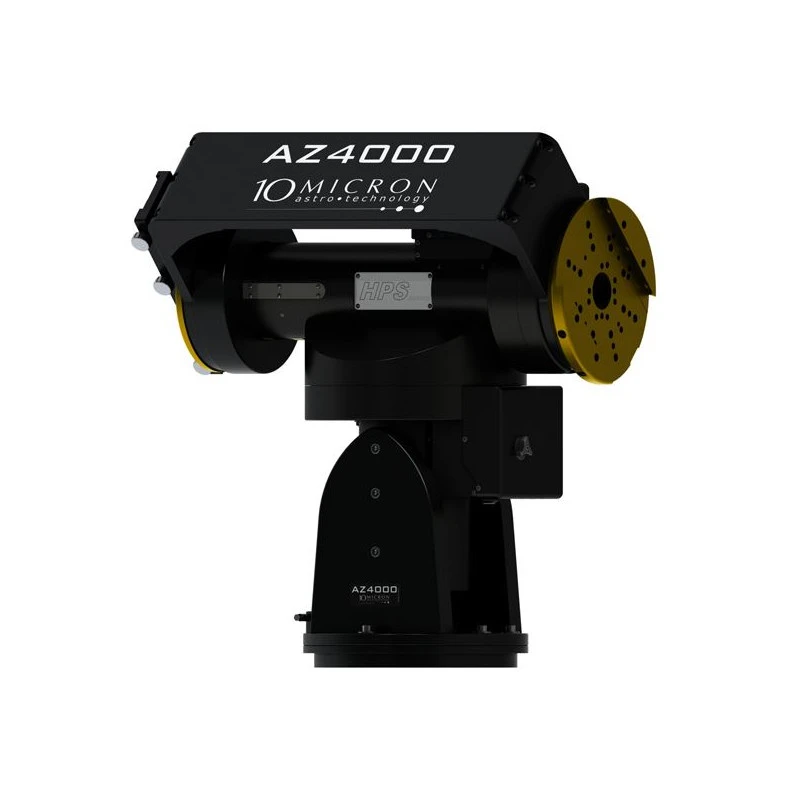

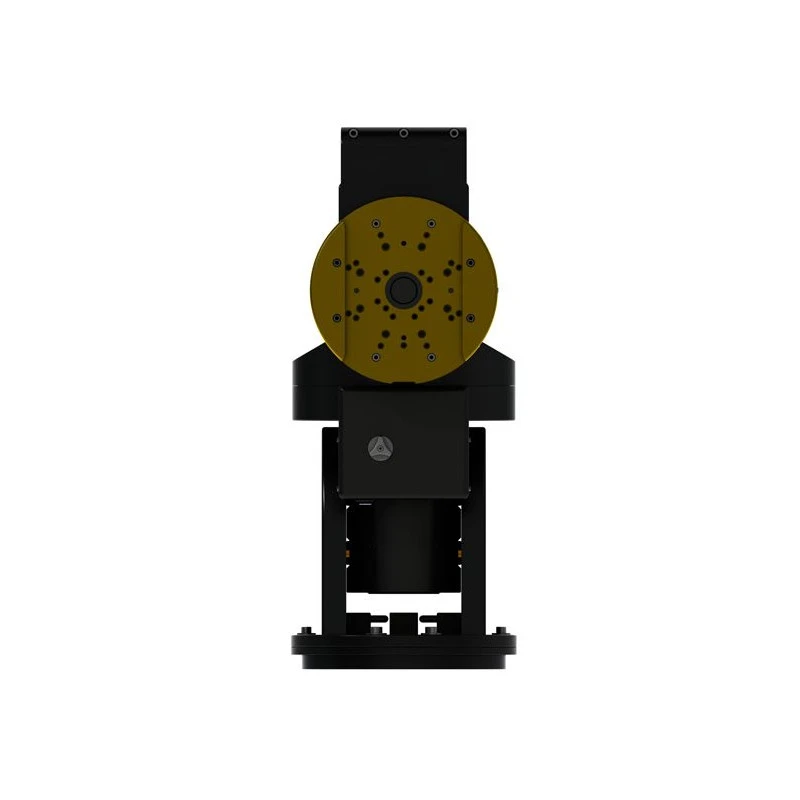

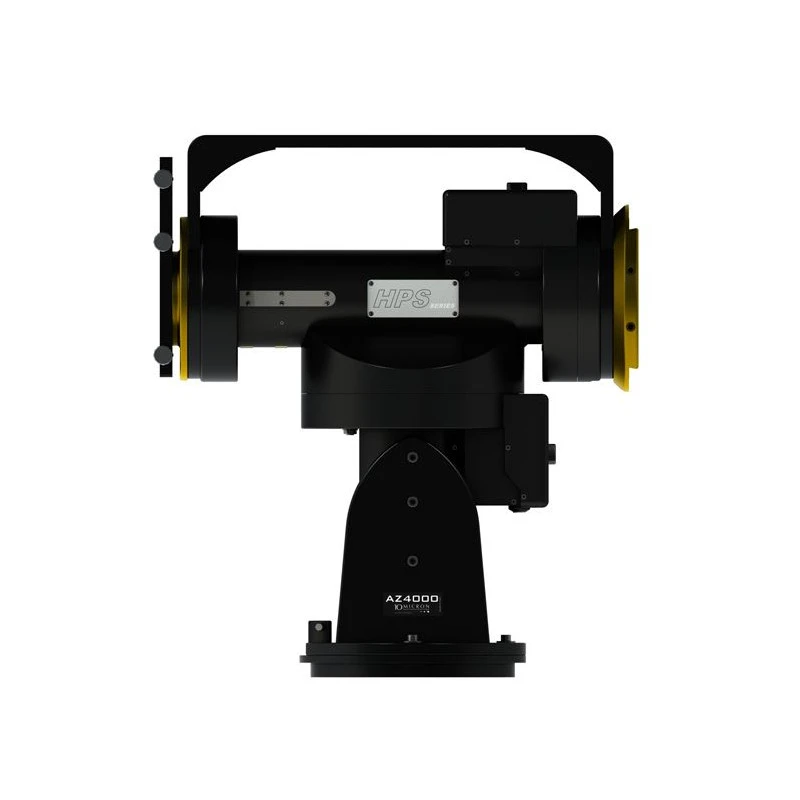

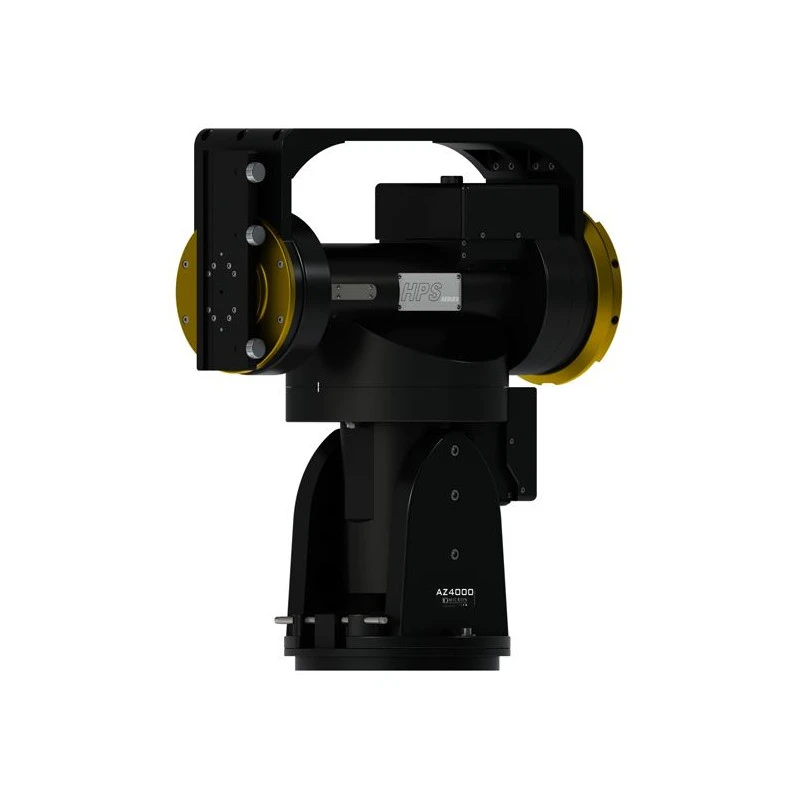

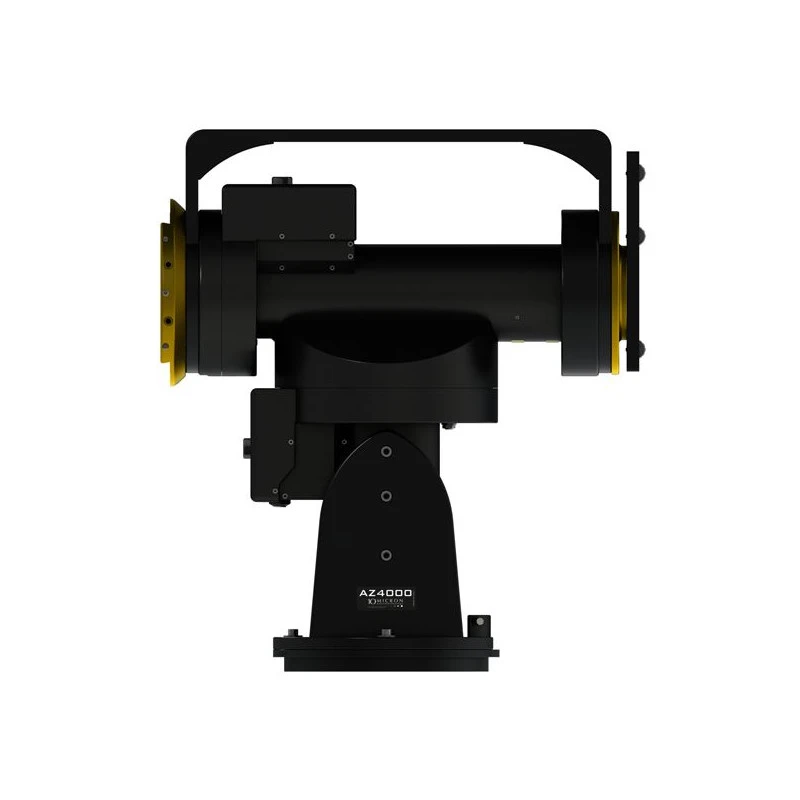

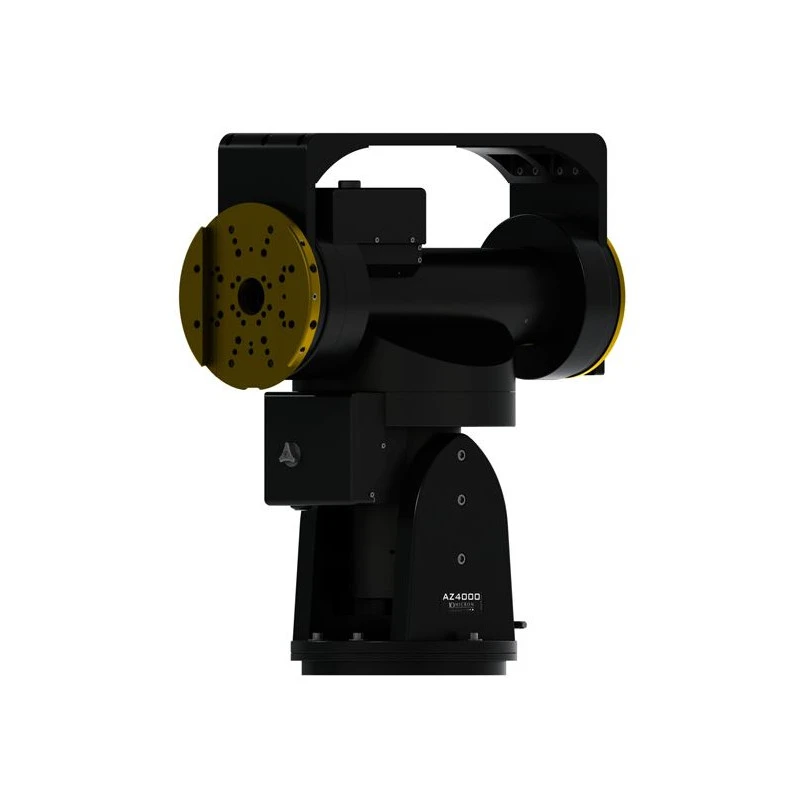

10 Micron Mount AZ 4000 HPS
Original price was: $369.00.$98.99Current price is: $98.99.
- Your satisfaction is 100% guaranteed.
- Best price, safe shopping guarantee
- Made of environmentally friendly materials
- Top Quality Products
Product description
- Axes: Azimuth: 85mm diameter, Alt. 80mm diameter, alloy steel
- Bearings: Pre-loaded tapered roller bearings
- Worm wheels: Azimuth. 430 teeth, 330 mm diameter, B14 bronze Alt.. 315 teeth, 244 mm diameter, B14 bronze
- Worms gears diameter 32mm, tempered alloy steel, grinded and lapped
| Max. additional load capacity(kg) | 150 |
|---|---|
| Precision of tracking | 1 (~ 0,7" RMS) |
| Type | Mount |
| Series | AZ HPS |
| Tripod | without tripod |
| GoTo system | yes |
| Operating temperature | (-15) – (+35) |
| Interfaces | RS-232, GPS Port, ST-4, Ethernet |
| Position precision | < 20 |
| Mounting saddle | without |
| Motor type | Servomotors |
| Input voltage | 24 |
| Material of worm gear | Steel |
| Material of worm wheel | Bronze |
| Diameter of counterweight bar(mm) | 60 |
| Slow-motion azimuth adjustment(°) | +/- 10 |
| Weight mount head only(kg) | 125 |
| Type of build | Azimuthal |
