Celestron 2x Smart Power And Dew Protection Control System

Favour intelligence over brute force in the battle against dew. These controls increase your battery life by optimising energy consumption. The controls collect and analyse information in real-time to heat your lens enough to prevent dew forming.

This control system is ideal for the heated dew-prevention rings for the Celestron SC scopes as they have a built-in thermistor (temperature sensor) which measures the temperature of your Celestron SC, EdgeHD or RASA’s Schmidt plate. Heated rings from other manufactures are also compatible. In this case, you also need the temperature probe from the list of recommended accessories.

Intelligent controls: At the heart of the control system lies a powerful microprocessor which gathers information using sensors, calculates the data, and automatically adjusts your heating element. With the help of the integrated environmental sensor, the control unit monitors the ambient temperature and humidity and monitors the temperature of the heating element with the help of temperature probes.

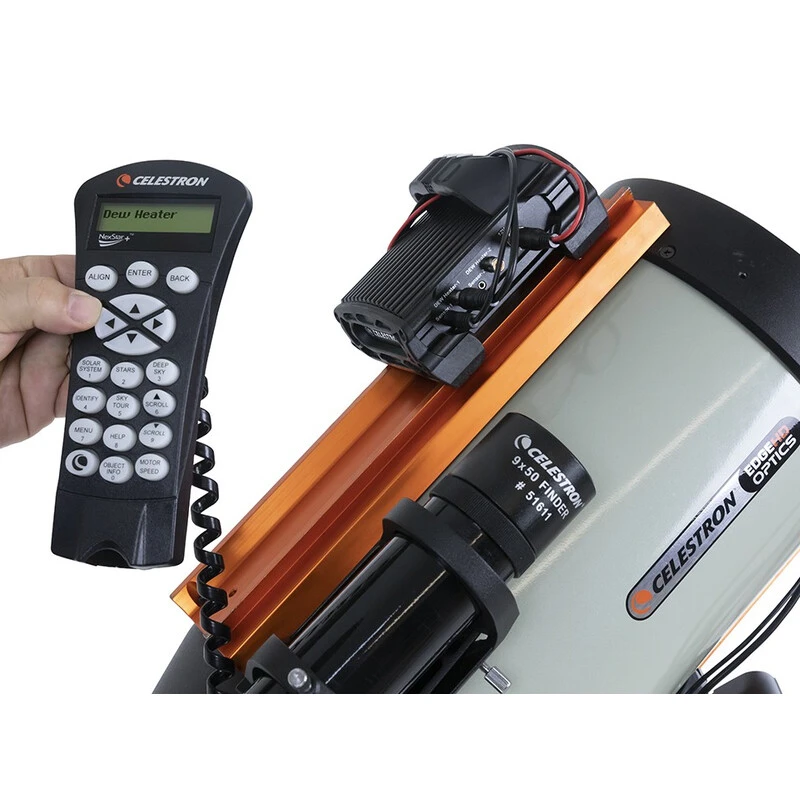

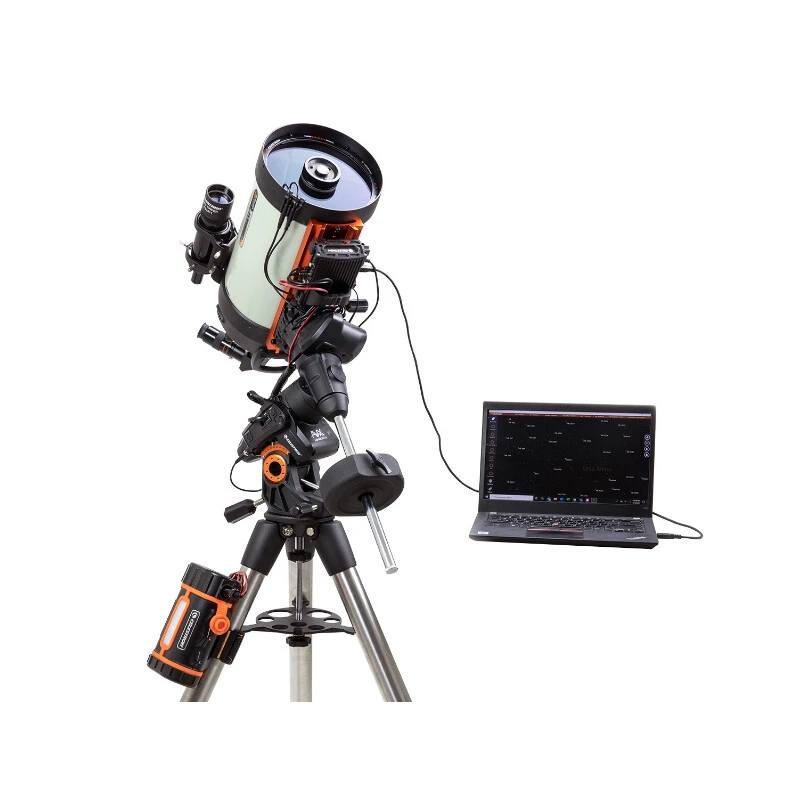

The dew protection control system can also be used as a stand-alone accessory. If you look at the control unit data and want to manually change the settings, you can connect it to your Celestron telescope’s hand controller or your PC. The control system is compatible with NexStar+ or StarSense hand controller using the latest firmware, or with Celestron CPWI telescope control software which comes with every Celestron mount.

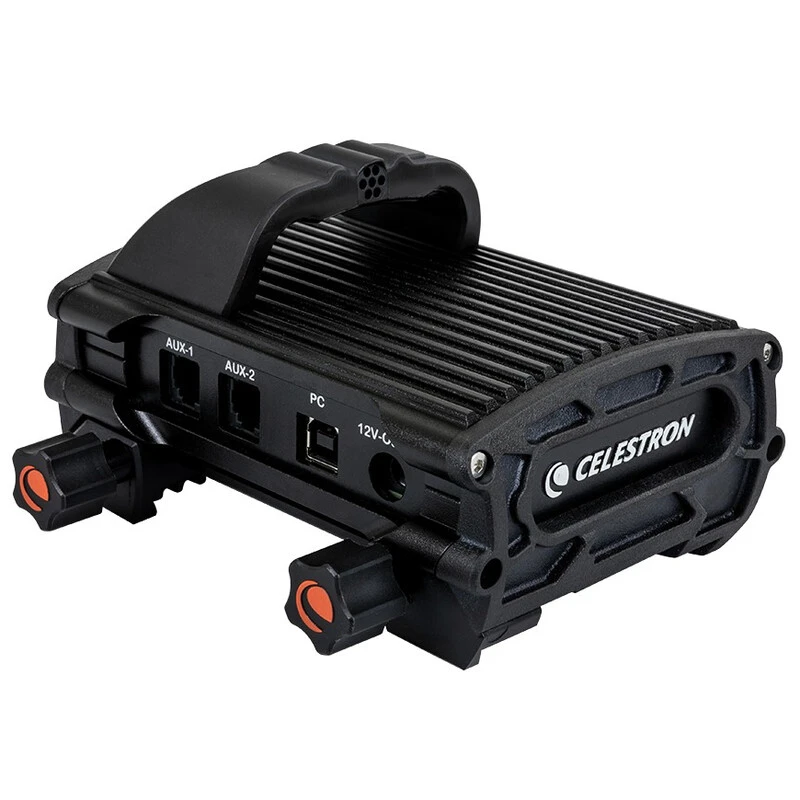

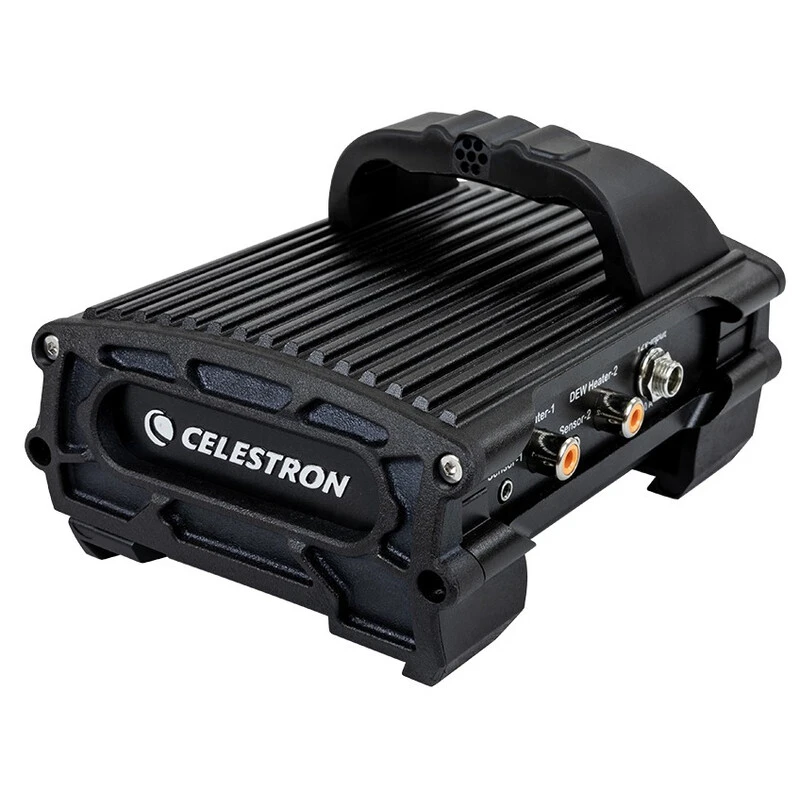

Unique design: The smart dew protection controls are enclosed in a robust metal casing. Inside, a fan protects the control unit electronics. The sensor and control unit, which contain the device’s status LEDs and environmental sensors, are located on the top of the control system. It also helps with cable management. Celestron has placed the temperature and humidity sensors here, away from the control unit and other components which generate heat. Unlike other control systems, these sensors do not require additional cables to obtain precise readings.

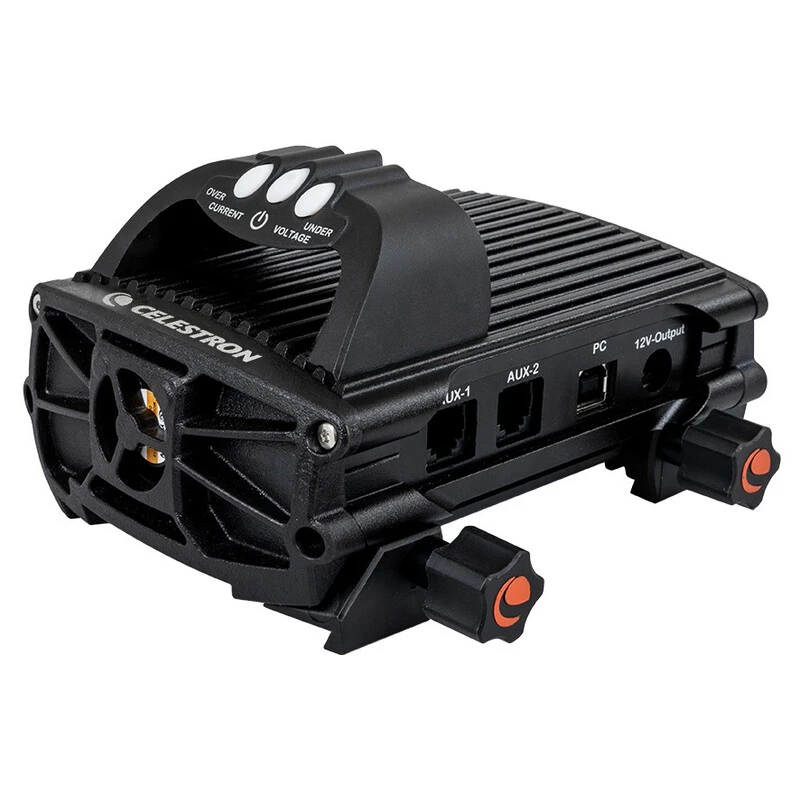

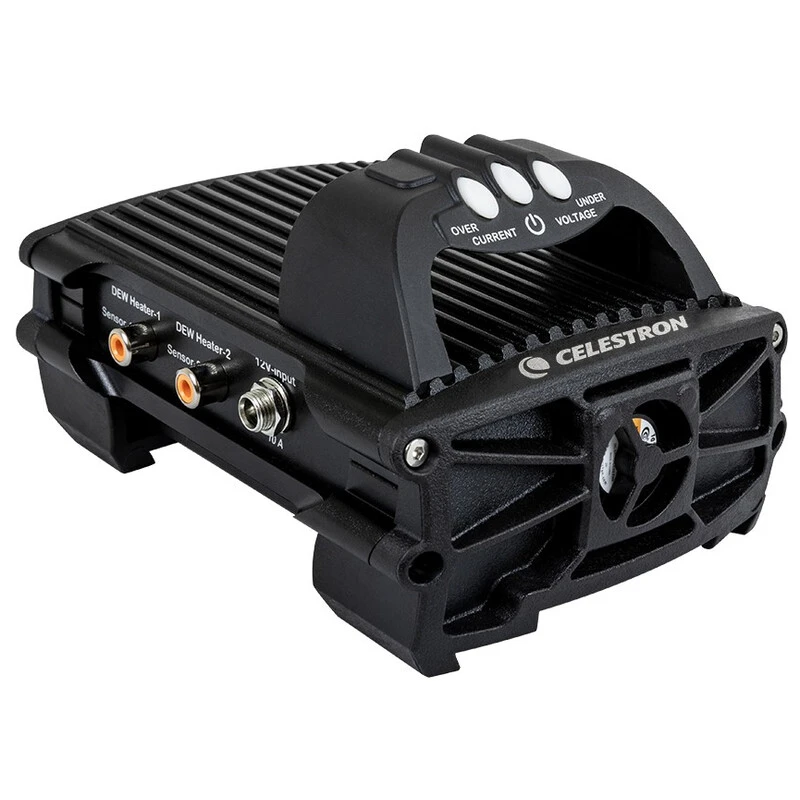

The LED lights on the control unit display the device’s current status. The LEDs warn you when the control unit is consuming more electricity than your power source can provide or when the battery needs to be recharged. You can dim the LEDs when beneath a dark sky.

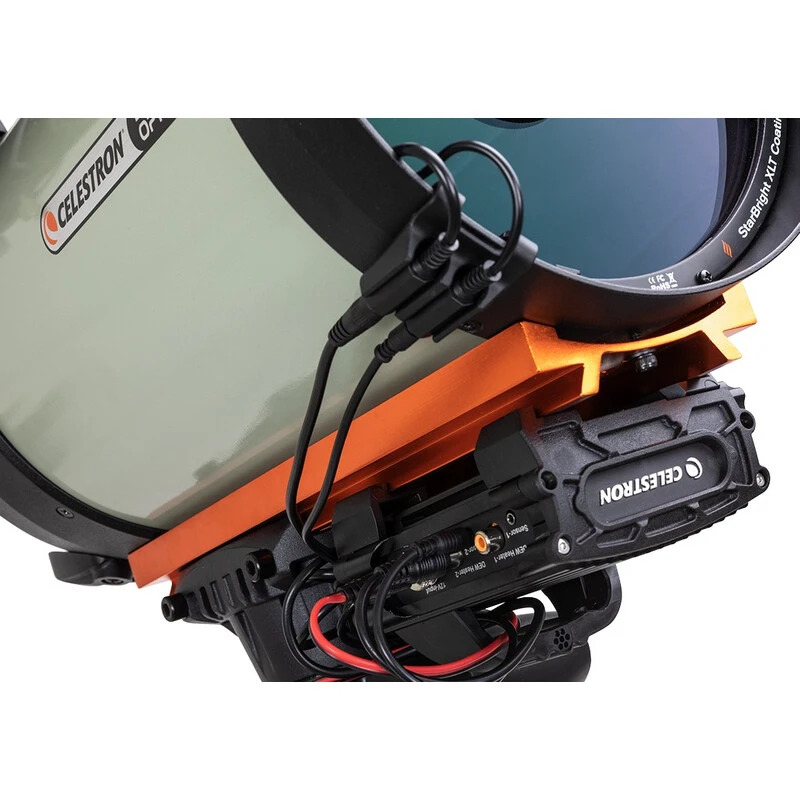

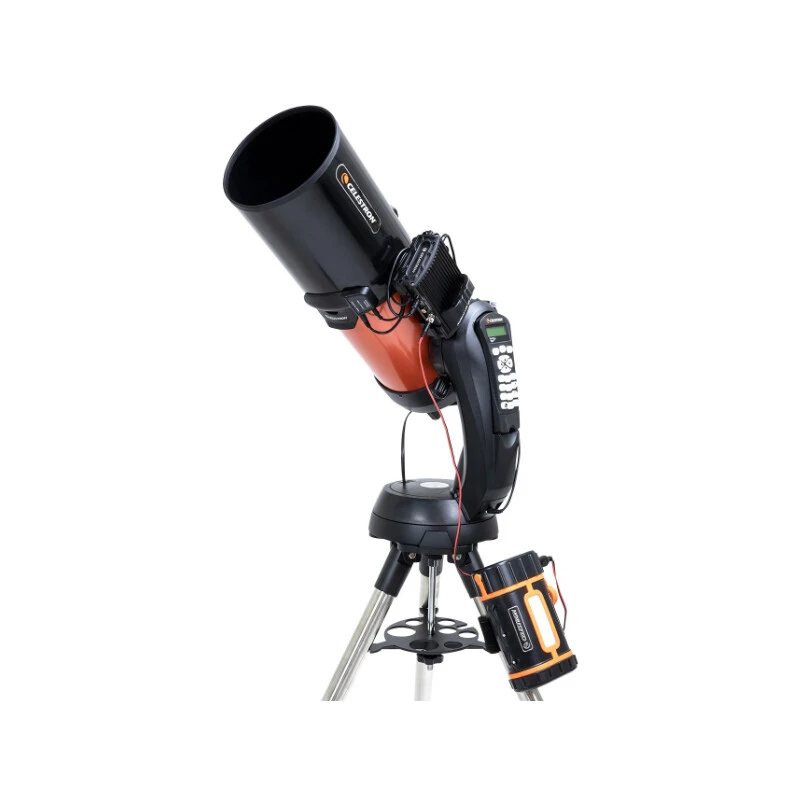

The Celestron dew protection controls are secured using the integrated Vixen-style prism clamps. If you would prefer to securely attach your control system to your tripod leg, use the provided belt.

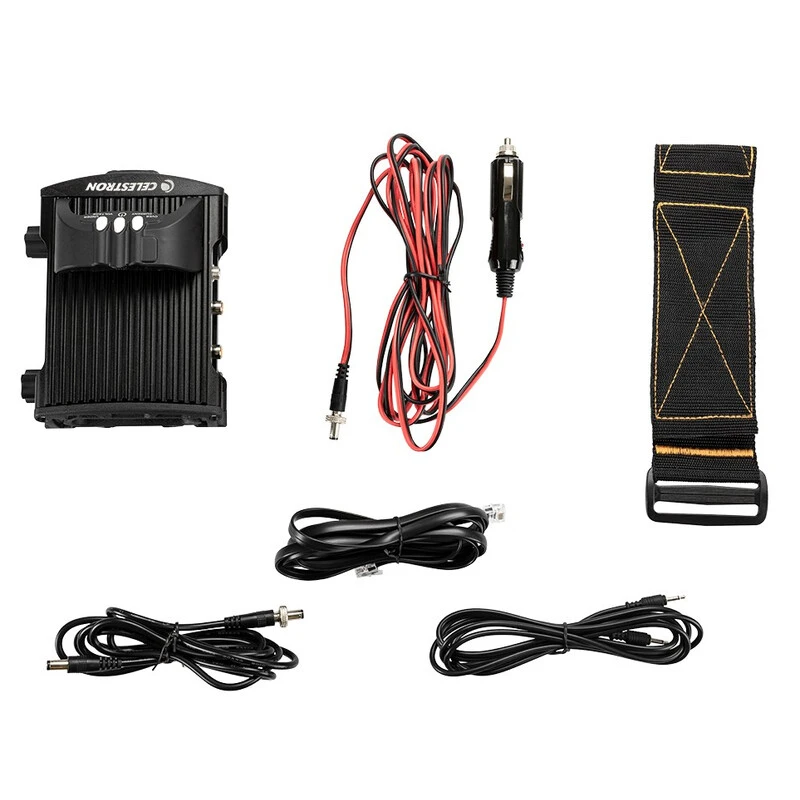

Includes

• smart dew protection controls
• Tripod leg belt
• Power cable for control system
• Power cable for external 12V DC unit
• AUX cable for Celestron mount connection
• Thermistor extension cable for connection to Celestron heated dew-prevention ring

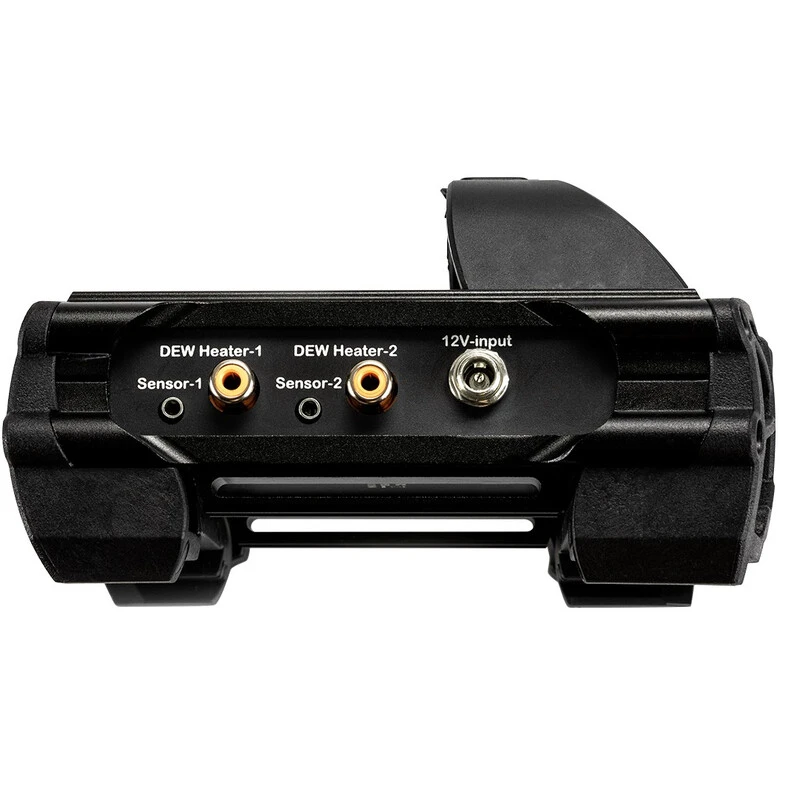

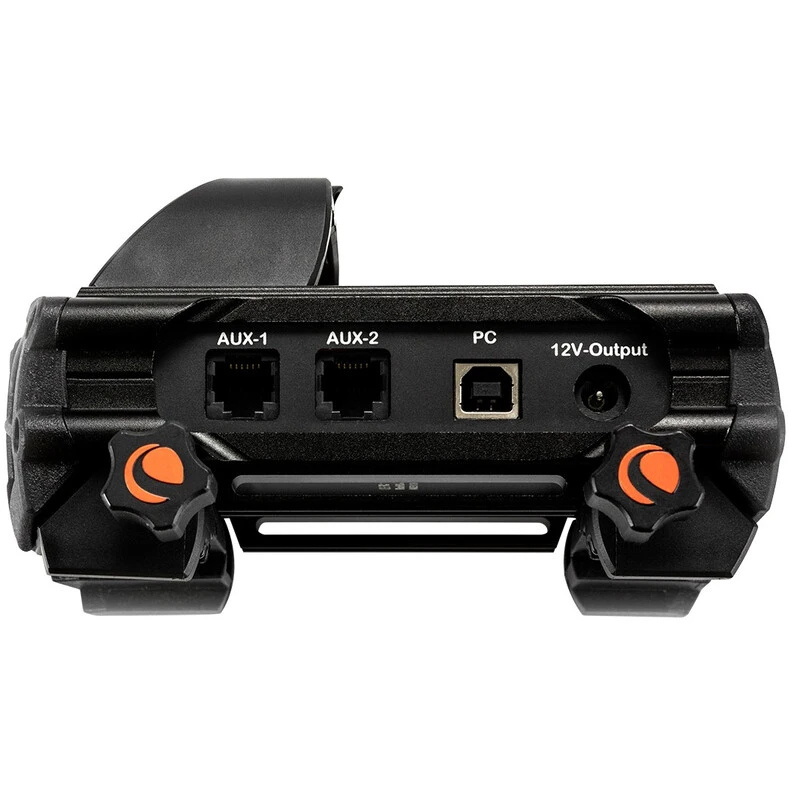

2x output: The control system has two connections in order to simultaneously control two heating elements. You can use one connection to heat the telescope whilst using the other one to heat a second telescope, finderscope, guide sleeve, eyepiece or another accessory.

Furthermore, the control system has an additional 12V DC output which can be used to power another 12V device, e.g. the mount.

Power: The 2x smart dew protection controls are powered using a 12V DC battery and can handle a maximum supply of 120W (max. 10A current at 12V DC).
