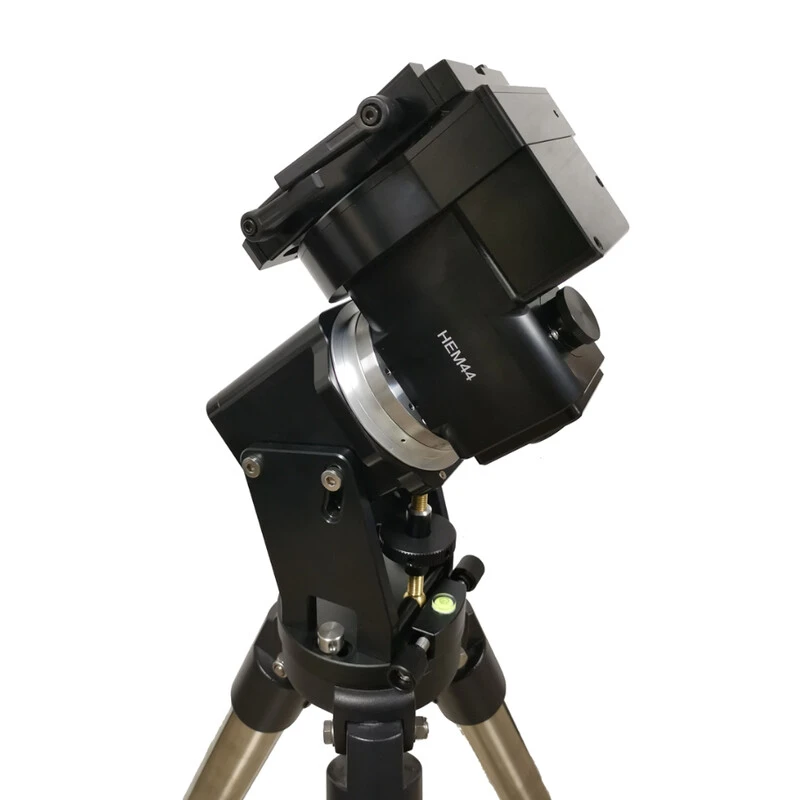

IOptron Mount HEM44 Hybrid EQ

Original price was: $333.00.Current price is: $99.99.

SKU: YXN0C 77496 Categories: Mountings, Mountings & accessories

Your satisfaction is 100% guaranteed.
Best price, safe shopping guarantee
Made of environmentally friendly materials
Top Quality Products

Product description

In short:

Load capacity of up to 20kg without counterweights
Built-in zero position and geolocation
Controllable using ASCOM & INDI drivers or on the go using iOptron Commander Lite, SkySafari and Raspberry Pi
Robust, durable full metal casing

Although the mount itself weighs only 6.2kg, you can mount telescopes weighing up to 20kg on this mount without the need for any counterweights.

The HEM44’s casing is made from CNC-machined metal which is not only aesthetically pleasing but also provides a robust foundation which will perform at a high level for many years.

Funitions such as an electronic brake and power-down storage enable the HEM44 to securely stop and start GoTo alignment, even after an unexpected power cut (no need for realignment and zero positioning). The mount can be controlled using a Windows PC (using the ASCOM or Commander drivers) or MacOS (using a third-party INDI driver), but also on the go using iOptron Commander Lite, SkySafari and a Raspberry Pi.

Our expert comment:

Please read the Quick Setup Guide (QSG) BEFORE setting up and operating the mount! Please also read the full online instruction manual for details. A HEM mount has an internal cable management system. To avoid cable damage, a mechanical stopper is implemented on the RA-axis in order to prevent rotation of more than 360 degrees. Due to the powerful torque of the strain wave gear in these mounts, damage to the stopper may occur, if

1.) “Site and Time” are incorrectly set and 2.) The mount is started from an incorrect Zero Position. Please perform these steps when initiating the HEM mount: “MENU => Zero Position => Searching Zero Position” in order to establish Zero Position. Then manually slew the mount past the meridian by 20 degrees.

Max. additional load capacity(kg)	20kg w/o counterweight
Level	yes
Autoguiding	yes
Software	Go2Nova 8408
GoTo Language	English
PEC correction	yes
WIFI	yes
GPS	yes
Type of build	Equatorial
Type	Mount
Series	HEM
Other contents	Power pack
Pole finder	no
Transport cases	yes
Tripod	without tripod
Handcontroller	yes
Interfaces	AutoGuider, Aux, RS232
GoTo system	yes
Motor type	Stepper motors
right ascension axis material	Aluminium
declination axis material	Aluminium
Encoder	no
Cable-guide	intern (2x12V 4A max., 1xUSB2.0
Amperage(A)	5
Input voltage	12
Slow-motion azimuth adjustment(°)	+/- 6
Weight mount head only(kg)	6,2 (mit Schiene)
Mounting saddle	Losmandy & Vixen
Polar elevation setting(°)	15-65
Language	English
Database	212.000
