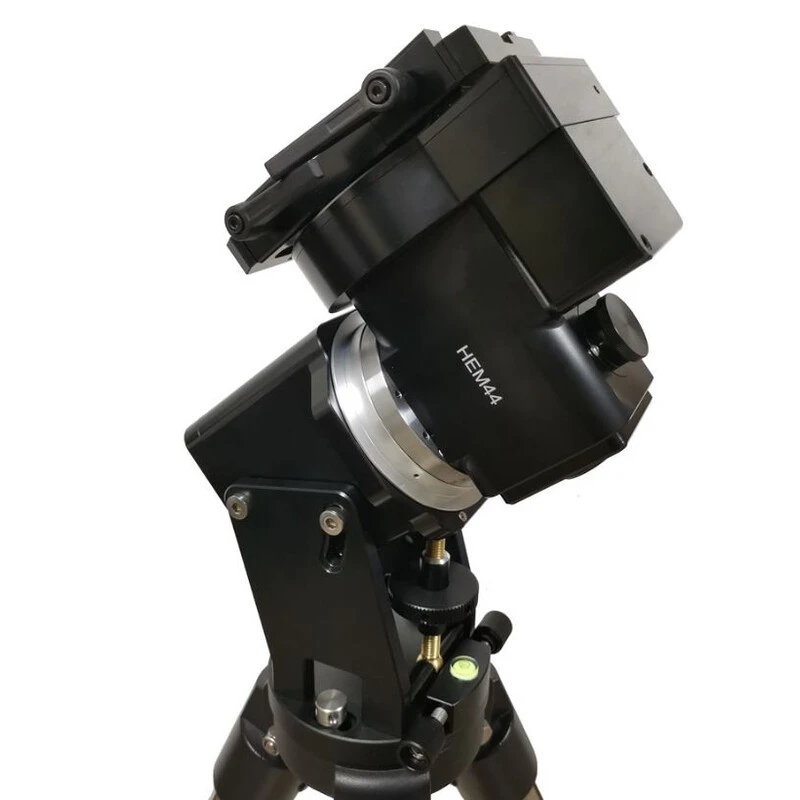

IOptron Mount HEM44 IPolar

Original price was: $313.00.Current price is: $96.99.

SKU: YXN0C 76567 Categories: Mountings, Mountings & accessories

Your satisfaction is 100% guaranteed.
Best price, safe shopping guarantee
Made of environmentally friendly materials
Top Quality Products

Product description

The advantages at a glance:

Harmonic drive technology
Load capacity of up to 20kg with a mount weight of only 6.2kg
Tried-and-tested iOptron Go2Nova software with hand-held controls and a database containing 212,000 objects
No tangled cables
Dual Vixen & Losmandy mounting saddle
Automatic stopping if the power supply is interrupted unexpectedly
Exceptional tracking, even without guiding

The iOptron HEM44 mounts provide excellent features of a “large” equatorial mount and, due to “Harmonic Drive” technology, can be used without counterweights/a counterweight shaft. Despite its low weight of only 6.2kg, it has a maximum load capacity of up to 20kg. This gives HEM mounts an exceptional weight-to-load ratio as well as having amazing features such as permanent periodic error correction (PEC), automatic mount stopping in the case of power outages with no need to repeat set-up after starting up again, precise tracking (even without guiding), internal cable management, a dual prism clamp for Vixen and Losmandy rails, high-quality CNC machined and anodised materials, tried-and-tested iOptron Go2Nova 8409 software, built-in WiFi, and iOptron’s trademark exceptionally quiet drive.

Our expert comment:

Please read the Quick Setup Guide (QSG) BEFORE setting up and operating the mount! Please also read the full online instruction manual for details. A HEM mount has an internal cable management system. To avoid cable damage, a mechanical stopper is implemented on the RA-axis in order to prevent rotation of more than 360 degrees. Due to the powerful torque of the strain wave gear in these mounts, damage to the stopper may occur, if

1.) “Site and Time” are incorrectly set and 2.) The mount is started from an incorrect Zero Position. Please perform these steps when initiating the HEM mount: “MENU => Zero Position => Searching Zero Position” in order to establish Zero Position. Then manually slew the mount past the meridian by 20 degrees.

Max. additional load capacity(kg)	20
Tripod	without tripod
Autoguiding	yes
Software	Go2Nova 8408
GoTo Language	English
Polar Alignment	iPolar
PEC correction	yes
WIFI	yes
GPS	no
Type of build	Equatorial
Type	Mount
Series	HEM
Other contents	Power pack
Pole finder	yes
Carry case	yes
Level	yes
Interfaces	Autoguider, USB
Handcontroller	yes
GoTo system	yes
right ascension axis material	Aluminium
declination axis material	Aluminium
Encoder	no
Cable-guide	internal
Amperage(A)	5
Input voltage	12
Slow-motion azimuth adjustment(°)	+/- 6
Weight mount head only(kg)	6,2
Mounting saddle	Losmandy & Vixen
Polar elevation setting(°)	15-65
Language	English
Database	212.000
