Skywatcher Mount EQ3-2
Original price was: $317.00.$96.99Current price is: $96.99.
- Your satisfaction is 100% guaranteed.
- Best price, safe shopping guarantee
- Made of environmentally friendly materials
- Top Quality Products
Product description

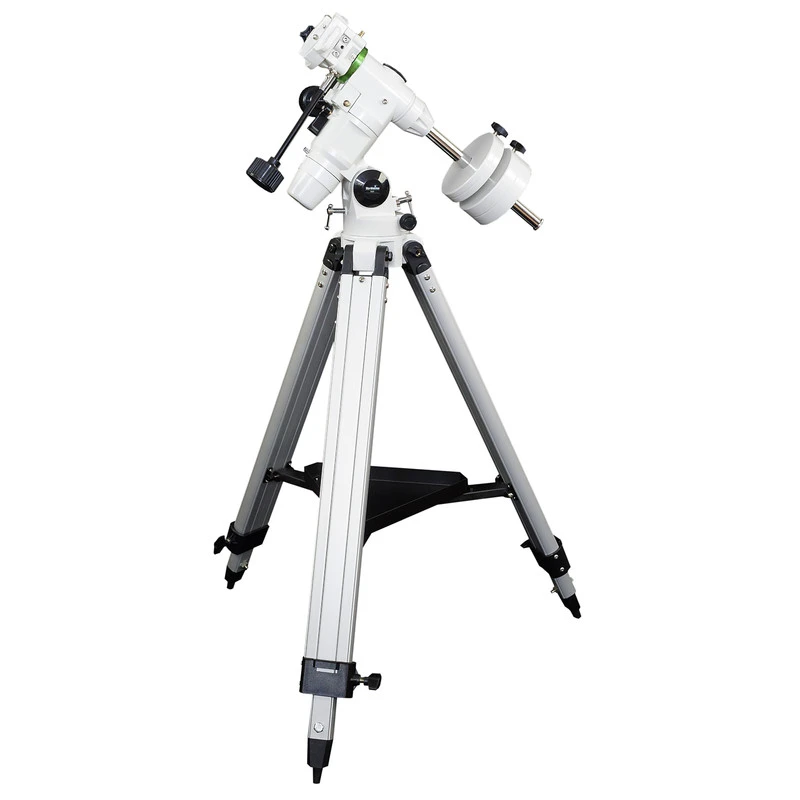

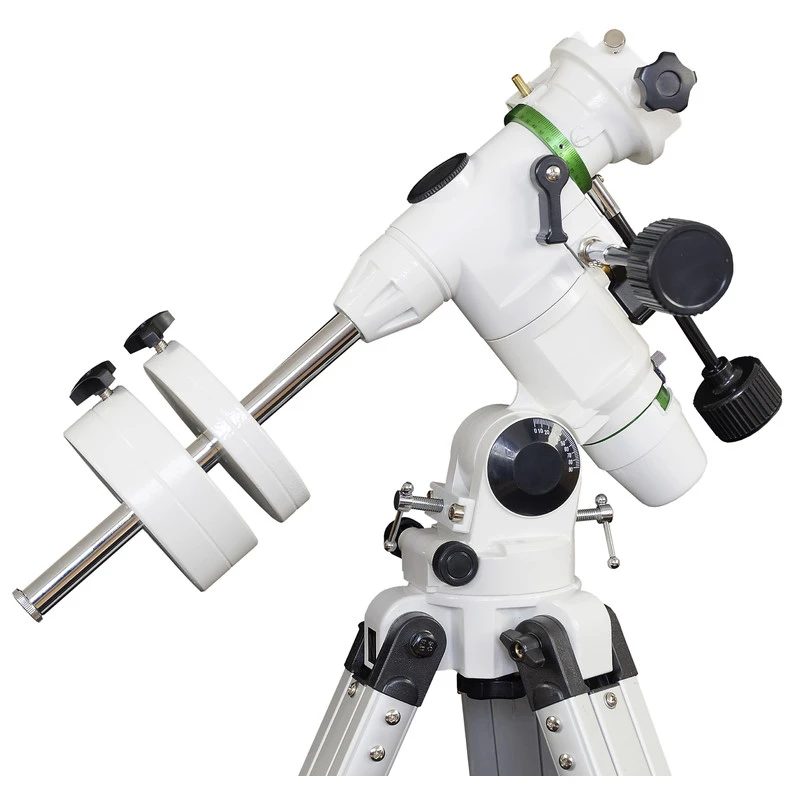

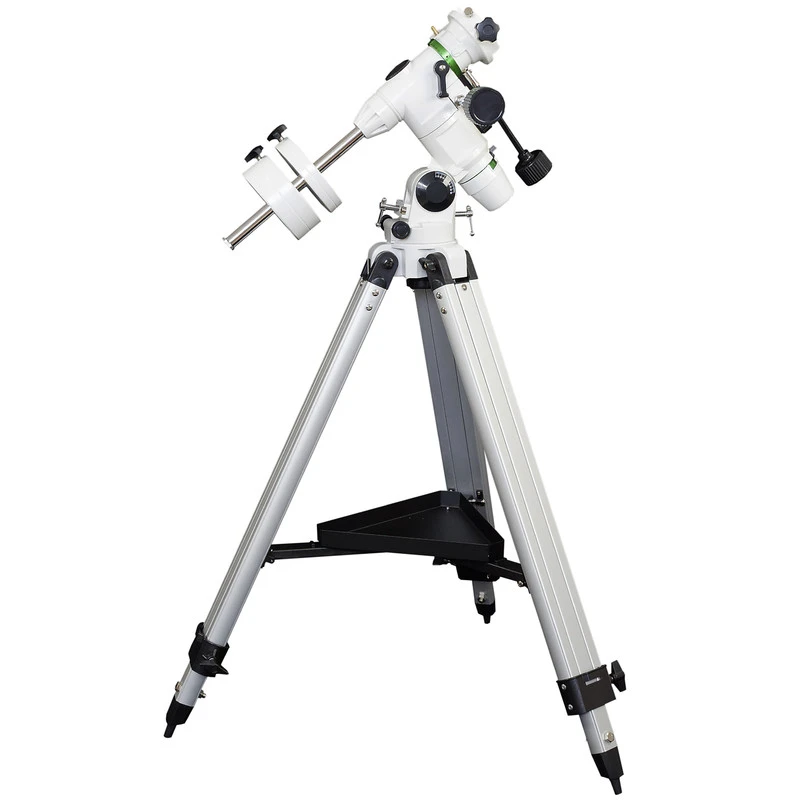

The EQ3-2 mount:
This mount is a further development of the EQ-3 mount designed in white. It provides a stable base for most medium-sized optics and is ideal for exploring the night sky. Once you have aligned the parallactic mount with the Pole Star, you can easily sight on an object, adjust it in the field of view and track it using the flexible slow-motions. Fine adjustment is possible in both right ascension and declination. The polar elevation at the observing site can be set using the fine scale provided and adjusted perfectly by using two screws. Both polar finder and electric motors plus a control can be retrofitted to both axes: the EQ3-2 is suitable not only for visual observing, but also for getting started in astrophotography. With optional add-ons such as the motor kit or GoTo upgrade kit, long exposure astrophotography also becomes possible. With a little practice, you will soon be able to produce successful images of galaxies and nebulae.
Included with the mount:
- mount with manual adjustment knobs
- extra brace with eyepiece tray
- suitable counterweights
Our expert comment:
Skywatcher is changing the interface on the newest version of the EQ-6 mount. You can find out here which EQMOD cable you require depending on which version of EQ-6 you have. If your mount has a DB9 interface (also known as a serial port, as found on older computers), these are the suitable EQMOD cables:
https://www.astroshop.eu/datenkabel-adapter/pierro-astro-usb-eq6-direkt-schnittstelle-fuer-skywatcher-eq6-n-eq6-orion-atlas/p,58297
https://www.astroshop.eu/datenkabel-adapter/pegasusastro-eqdir-usb-stick-fuer-skywatcher-montierungen-mit-db9/p,61892
https://www.astroshop.eu/datenkabel-adapter/ertl-elektronics-adapter-eqdir-rs232-fuer-skywatcher-eq6/p,49908
https://www.astroshop.eu/datenkabel-adapter/primalucelab-eqmod-usb-schnittstelle-fuer-skywatcher-eq-6/p,51735
If you purchased your EQ-6 recently and it has the new interface panel (along with an RJ-45 male connector, similar to the EQ-6-R or the AZ-EQ-6), the cables listed below should fit this new version of the EQ-6. However, we are still gathering information to confirm this (updated end of October 2022):
https://www.astroshop.eu/datenkabel-adapter/pierro-astro-usb-heq5-direkt-schnittstelle-fuer-skywatcher-heq5-eq8-az-eq6-az-eq5-eq6-r/p,48677
https://www.astroshop.eu/datenkabel-adapter/ertl-elektronics-adapter-eqdir-usb-fuer-skywatcher-eq-3-5-8-heq5-azeq6-eq6-r/p,49806
https://www.astroshop.eu/datenkabel-adapter/pegasusastro-eqdir-usb-stick-fuer-skywatcher-montierungen-mit-rj45/p,61889
If your mount already has a USB interface on the panel, you do not need an additional cable. Simply identify the COM port using the device manager and set the baud rate to 115200. If you are in doubt, send us a picture of your mount’s interface panel by email.
| Designation | EQ3-2 |
|---|---|
| Polar axis scale | yes |
| Type | Mount |
| Total weight(kg) | 13 |
| Tripod material | Aluminium |
| Tripod weight(kg) | 3,76 |
| Max. tripod height(cm) | 123 |
| Pole finder | no |
| Other contents | Slow motion cable |
| Motor-powered | no |
| Tripod | Tripod |
| Fitting for prism rail | yes |
| Max. additional load capacity(kg) | 5 |
| Mounting saddle | Vixen-Style |
| Material of counterweights | Steel |
| Operating temperature | -30 bis +40 |
| Diameter of counterweight bar(mm) | 18 |
| Counterweight(s)(piece) | 2 (1.8 kg and 3.42 kg) |
| Axle bearings | Ball-bearings and plain-bearings |
| Worm gear teeth (RA)(piece) | – |
| Material of worm wheel | Aluminium |
| Material of worm gear | Bronze |
| Polar elevation setting(°) | 28 – 65 |
| Type of build | Equatorial |
